Advantages :

• E-beam cross-linked compounds
• High resistance against UV, ozone and hydrolyzation
• High temperature resistance, materials will not melt or flow
• Flexibility under cold conditions
• Long usable life, expecte usable life over 25 years (90 °C )

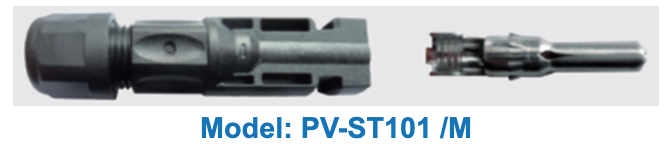

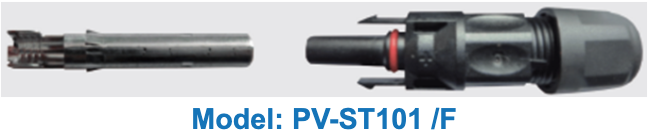

• Applicable to all common connectors

Application :

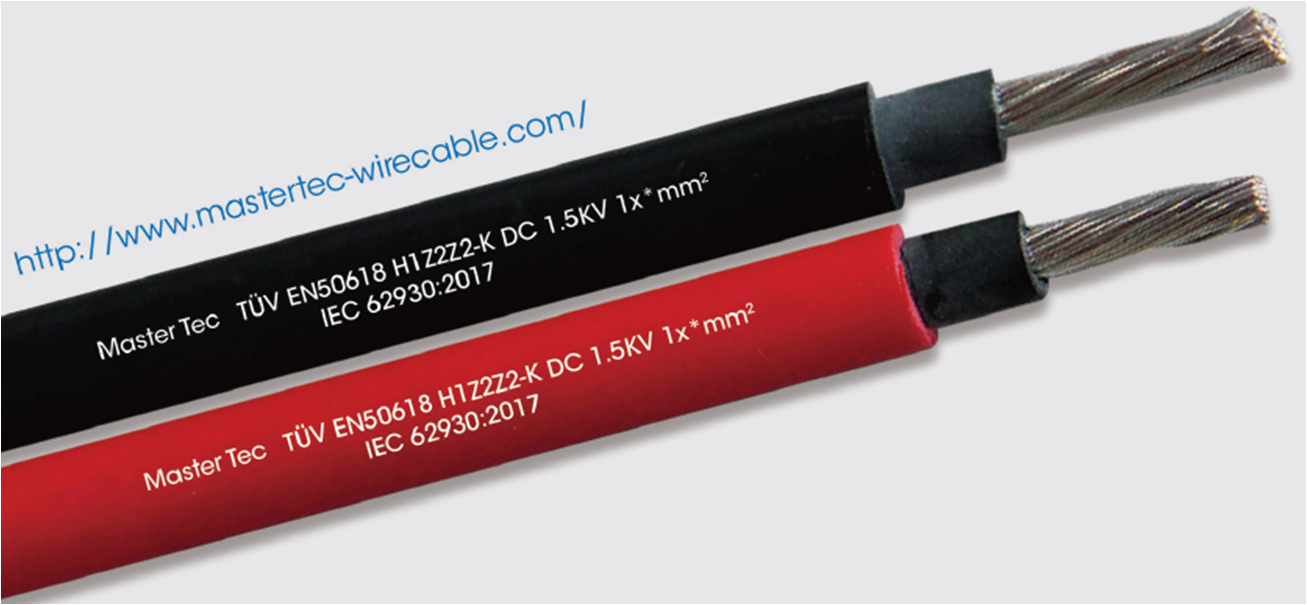

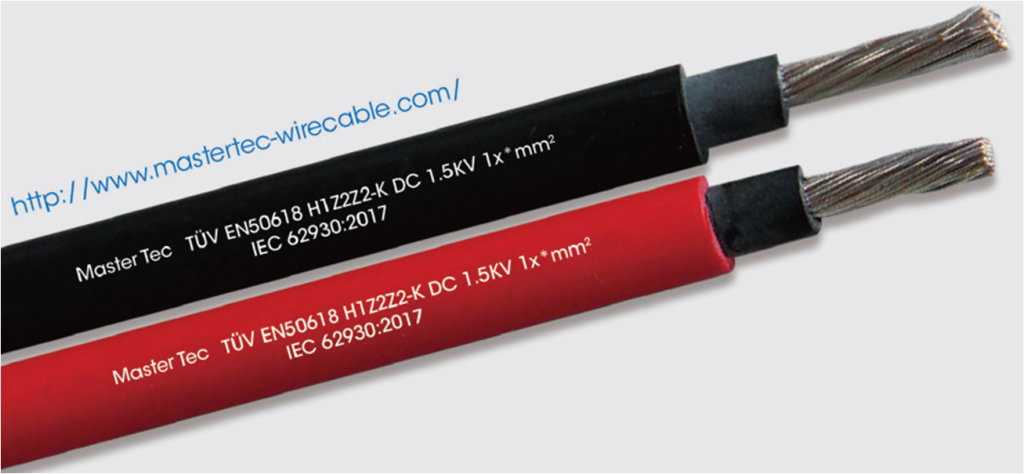

In a solar power system of rated voltage Uo=1.5KV, PV cables are used to connect between solar panels and inverters.

Construction :

• Conductor: Soft tinned annealed copper according to IEC 60228, class 5
• Insulation: XLPO, flame retardant, halogen free, E-Beam cross-linked compounds
• Jacket: XLPO, flame retardant, halogen free, E-Beam cross-linked compounds, UV and ozone resistant, black/white marking
• Jacket color: All the chromatographic

Electrical performance :

• Rated Voltage: Uo=1.5KV DC
• Test Voltage: 6.5KV AC 5min

Thermal performance :

• Operation temperature: -40 °C ～+ 120 °C
• Ambient temperature: -40 °C ～+ 90 °C
• Maximum short circuit temperature: 250 °C, + 536 °F,5s

Bending radius :

• Fixed setting: >4 x Ø
• Moves on occasion: >5 x Ø

Material characteristics / standard :

• Fireproof performanc: EN 60332-1-2
• Smoke emission: EN 61034-1; EN 61034-2
• Low fire load: DIN 51900
• Approval: TUV EN50618
• Applied Standard: TUV EN50618
