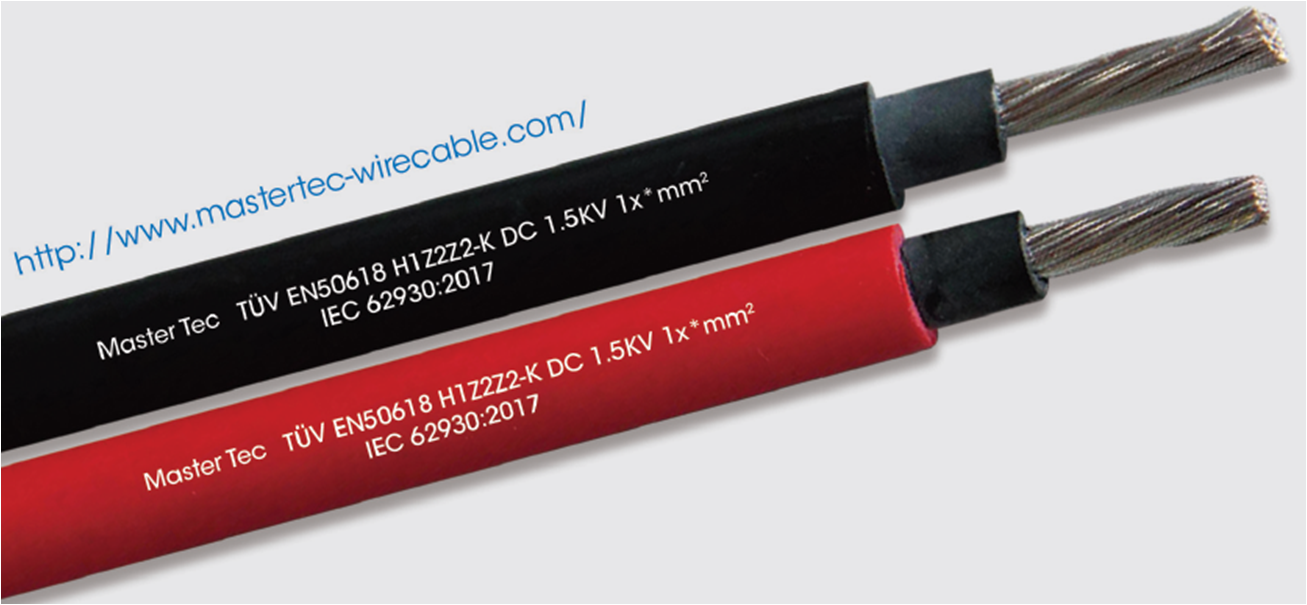

TUV EN50618 H1Z2Z2-K DC 1.5KV
IEC 62930:2017

Advantages :
  • E-beam cross-linked compounds
  • High resistance against UV, ozone and hydrolyzation
  • High temperature resistance, materials will not melt or flow
  • Flexibility under cold conditions
  • Long usable life, expecte usable life over 25 years (90 °C )
  • Applicable to all common connectors

Application :
In a solar power system of rated voltage Uo=1.5KV, PV cables are used to connect between solar panels and inverters.

Construction :
  • Conductor: Soft tinned annealed copper according to IEC 60228, class 5
  • Insulation: XLPO, flame retardant, halogen free, E-Beam cross-linked compounds
  • Jacket: XLPO, flame retardant, halogen free, E-Beam cross-linked compounds, UV and ozone resistant, black/white marking
  • Jacket color: All the chromatographic

Electrical performance :
  • Rated Voltage: Uo=1.5KV DC
  • Test Voltage: 6.5KV AC 5min

Thermal performance :
  • Operation temperature: -40 °C ~+ 120 °C
  • Ambient temperature: -40 °C ~+ 90 °C
  • Maximum short circuit temperature: 250 °C, + 536 °F,5s

Bending radius :
  • Fixed setting: >4 x Ø
  • Moves on occasion: >5 x Ø

Material characteristics / standard :
  • Fireproof performanc: EN 60332-1-2
  • Smoke emission: EN 61034-1; EN 61034-2
  • Low fire load: DIN 51900
  • Approval: TUV EN50618
  • Applied Standard: TUV EN50618



SOLAR CONNECTOR

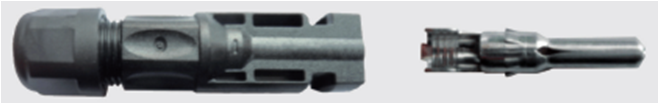

Model: PV-ST101 /M

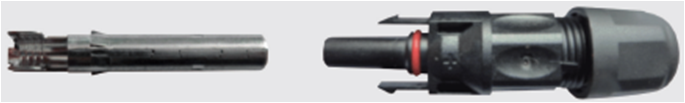

Model: PV-ST101 /F

Technical Parameters of PV-ST101
Certification mark TUV UL
The diameter of the connection 1 x 4 mm² (12AWG)
Plug Housing (RTI) PC (115 °C)
Receptacle contact material Copper / silver plated
Max. System voltage 1500 VDC
Rated impluse voltage 8000 VAC
Rated insulation voltage 16000 VDC
Rated current 30A (1 x 4 mm² , 12AWG)
Waterproof grade IP67
Temperature range -40 °C - 85 °C
Flame retardance UL94-VO
Weather-resistance No serious appearance defects after Ultravoilet irradiation and humid heat test
Contact resistance <0.35m Ω

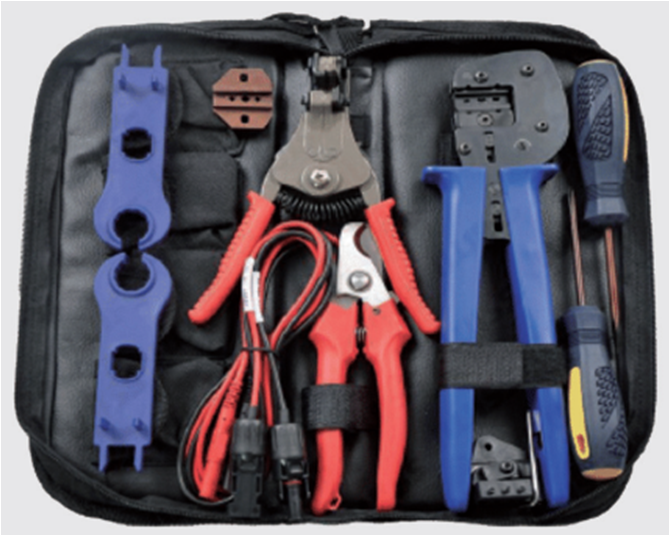

PV INSTALLATION TOOLS

PV-TOPBOX-01

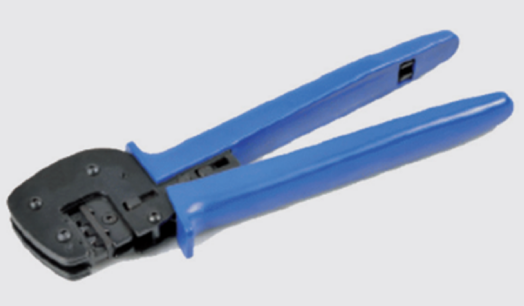

Solar Crimping Tool PV-CT01


Solar Cable Stripping Toos PV-CT02

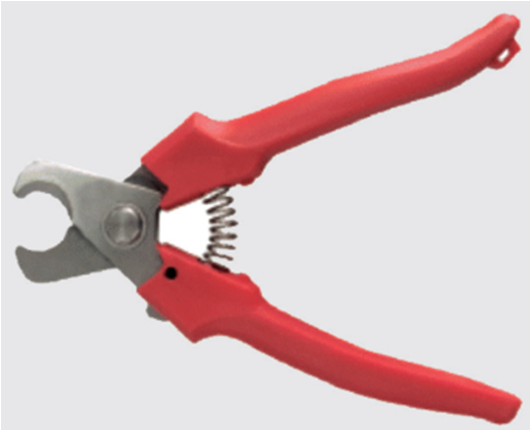

Solar Cable Cutter PV-C03

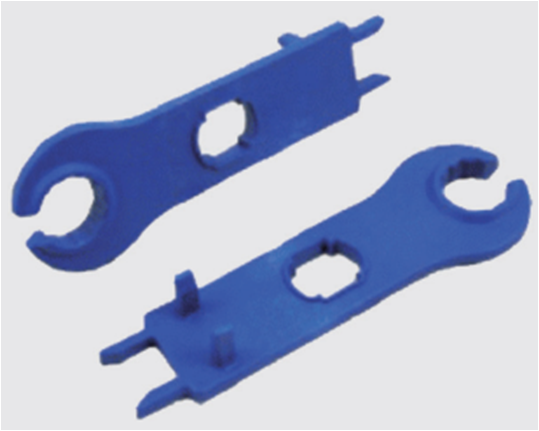

MC4 PV Connector Spanner PV-CT04
