Master Tec Wire & Cable Sdn Bhd

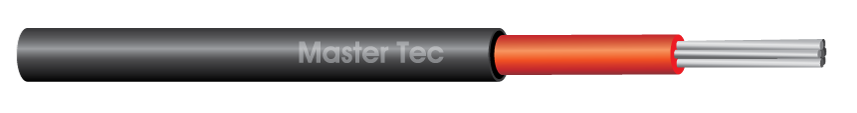

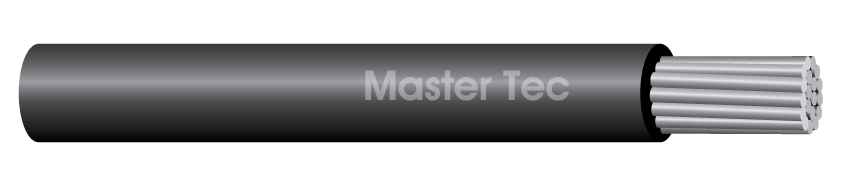

PVC Cables BS 6004, TNB Spec (Aluminium)

Application : This cable is used in light fitting, and in switching and control equipment.
It can be installed in conduit, in cable trunking and on cable trays.
Voltage Rating : 450/750 V
Construction : Stranded plain aluminium conductor, PVC insulated cable
Insulation Colour : Black or as per order
Specification : BS6004, TNB Spec

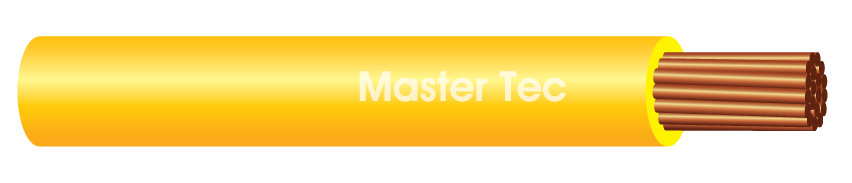

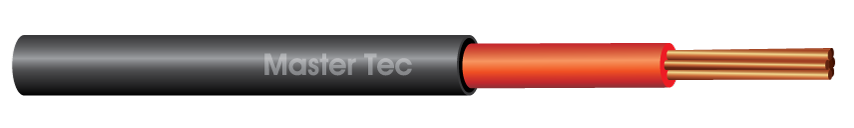

Switchgear Wires BS 6231 (Copper)

Application : This cable is used in light fitting, and in switching and control equipment.
It can be installed in conduit, in cable trunking and on cable trays.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor (Class 5 stranded circular), PVC insulated cable
Insulation Colour : Red, Yellow, Blue, Black, Brown, Grey, Green, White or Green / Yellow or as per order
Specification : BS6231



PVC / PVC Power Cables IEC 60502-1, MS 2100 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, on cable trays, on cable ladders and in cable trunking.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, PVC insulated, PVC sheathed cable.
Insulation Colour : Black or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2100

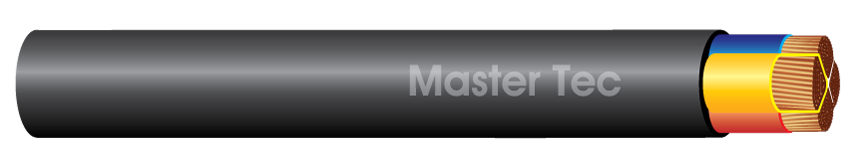

PVC / PVC Power Cables IEC 60502-1, MS 2102 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, on cable trays, on cable ladders and in cable trunking.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, PVC insulated, PVC sheathed cable.
Insulation Colour :
2-Core : (Brown & Blue) or (Red & Black)
3-Core : (Brown, Black & Grey) or (Red, Yellow & Blue)
4-Core : (Brown, Black, Grey & Blue), (Red, Yellow, Blue & Black) or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2102

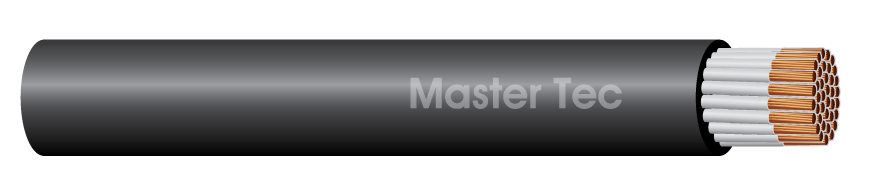

PVC / PVC Power Cables IEC 60502-1, MS 2102 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, on cable trays, on cable ladders and in cable trunking.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, PVC insulated, PVC sheathed cable.
Insulation Colour : White with Black numberings or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2102

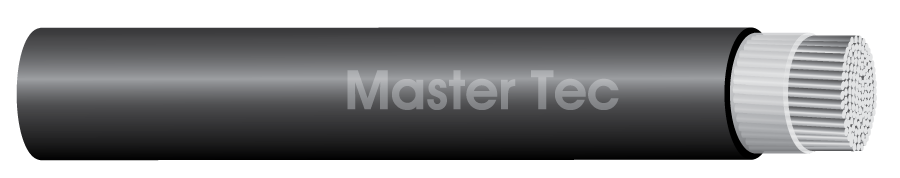

PVC / PVC Power Cables IEC 60502-1, MS 2100 (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, on cable trays, on cable ladders and in cable trunking.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, PVC insulated, PVC sheathed cable.
Insulation Colour : Black or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2100

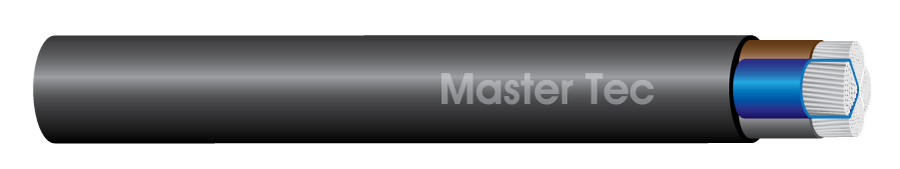

PVC / PVC Power Cables IEC 60502-1, MS 2102 (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, on cable trays, on cable ladders and in cable trunking.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, PVC insulated, PVC sheathed cable.
Insulation Colour :
2-Core : (Brown & Blue) or (Red & Black)
3-Core : (Brown, Black & Grey) or (Red, Yellow & Blue)
4-Core : (Brown, Black, Grey & Blue), (Red, Yellow, Blue & Black) or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2102



PVC / PVC / AWA / PVC Cables IEC 60502-1, BS 6346, MS 2101 (Copper)

Application : This cable is primarily used for main power supply such as in switchgears and power station.
It can be installed in cable trenches, cable ducts and cable trunking.
The armoured cable is ideal for ground emplacement if a higher electrical or mechanical protection is required.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, PVC insulated, PVC bedding, aluminium wires armoured, PVC sheathed cable.
Insulation Colour : Black or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, BS 6346, MS 2101

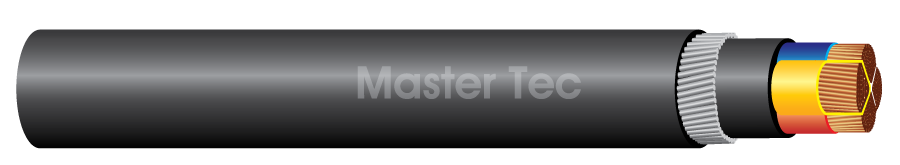

PVC / PVC / SWA / PVC Cables IEC 60502-1, BS 6346, MS 2103 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, on cable trays, on cable ladders and in cable trunking.
The armoured cable is ideal for ground emplacement if a higher electrical or mechanical protection is required.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, PVC insulated, PVC bedding, galvanized steel wires armoured, PVC sheathed cable.
Insulation Colour :
2-Core : (Brown & Blue) or (Red & Black)
3-Core : (Brown, Black & Grey) or (Red, Yellow & Blue)
4-Core : (Brown, Black, Grey & Blue), (Red, Yellow, Blue & Black) or as per order
Sheath Colour : Black or as per order
Specification : BS 6346, IEC 60502-1, MS 2103

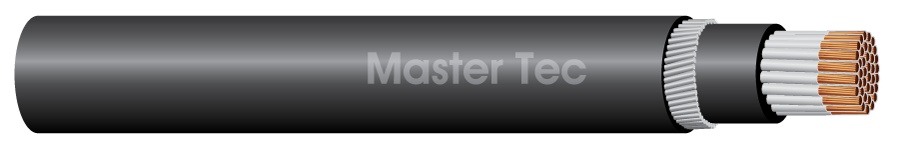

PVC / PVC / SWA / PVC Cables IEC 60502-1, BS 6346, MS 2103 (Copper)

Application : This auxiliary cable is used in super visory electrical equipment and station control circuits, in light, ordinary or heavy duty industry where power distribution device is needed to transmit control signals or measure signal operations.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, PVC insulated, PVC bedding, galvanized steel wires armoured, PVC sheathed cable.
Insulation Colour : White with black numbering
Sheath Colour : Black or as per order
Specification : BS 6346, IEC 60502-1, MS 2103

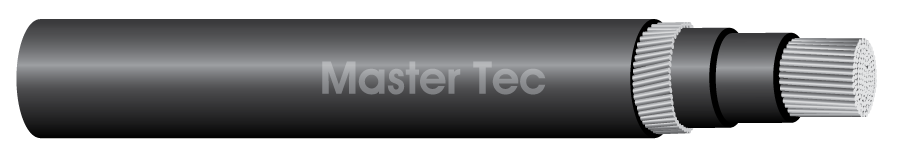

PVC / PVC / AWA / PVC Cables IEC 60502-1, BS 6346, MS 2101 (Aluminium)

Application : This cable is primarily used for main power supply such as in switchgears and power station.
It can be installed in cable trenches, cable ducts and cable trunking.
The armoured cable is ideal for ground emplacement if a higher electrical or mechanical protection is required.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, PVC insulated, PVC bedding, aluminium wires armoured, PVC sheathed cable.
Insulation Colour : Black or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, BS 6346, MS 2101

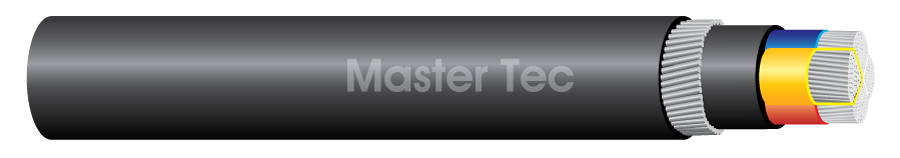

PVC / PVC / SWA / PVC Cables IEC 60502-1, BS 6346, MS 2103 (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, on cable trays, on cable ladders and in cable trunking.
The armoured cable is ideal for ground emplacement if a higher electrical or mechanical protection is required.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, PVC insulated, PVC bedding, galvanized steel wires armoured, PVC sheathed cable.
Insulation Colour :
2-Core : (Brown & Blue) or (Red & Black)
3-Core : (Brown, Black & Grey) or (Red, Yellow & Blue)
4-Core : (Brown, Black, Grey & Blue), (Red, Yellow, Blue & Black) or as per order
Sheath Colour : Black or as per order
Specification : BS 6346, IEC 60502-1, MS 2103



XLPE / PVC Cables IEC 60502-1, MS 2104 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays and on cable ladders and in switchgears.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, XLPE insulated, PVC sheathed cable.
Insulation Colour : Natural or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2104

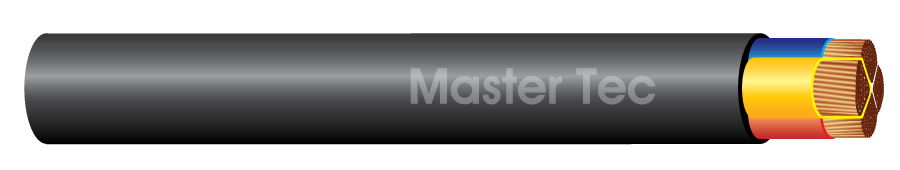

XLPE / PVC Cables IEC 60502-1, MS 2106 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, XLPE insulated, PVC sheathed cable.
Insulation Colour :
2-Core : (Brown & Blue) or (Red & Black)
3-Core : (Brown, Black & Grey) or (Red, Yellow & Blue)
4-Core : (Brown, Black, Grey & Blue), (Red, Yellow, Blue & Black) or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2106

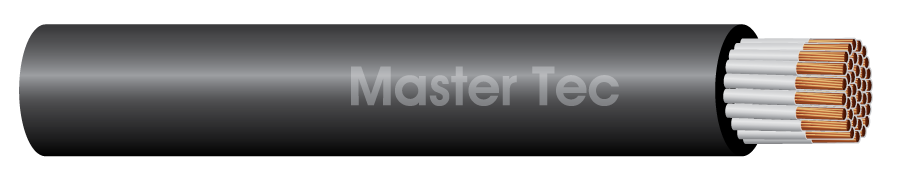

XLPE / PVC Cables IEC 60502-1, MS 2106 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, XLPE insulated, PVC sheathed cable.
Insulation Colour : White with black numbering
Sheath Colour : Black
Specification : IEC 60502-1, MS 2106



XLPE / PVC Cables IEC 60502-1, MS 2104 (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays and on cable ladders and in switchgears.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, XLPE insulated, PVC sheathed cable.
Insulation Colour : Natural or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2104

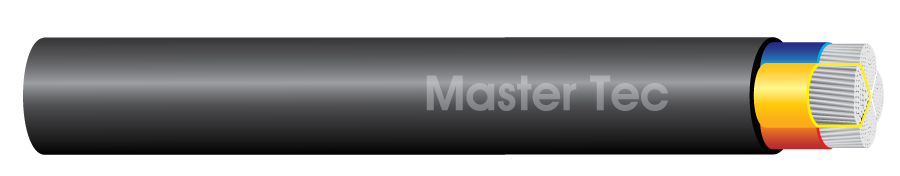

XLPE / PVC Cables IEC 60502-1, MS 2106 (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, XLPE insulated, PVC sheathed cable.
Insulation Colour :
2-Core : (Brown & Blue) or (Black & Red)
3-Core : (Brown, Black & Grey) or (Red, Yellow & Blue)
4-Core : (Brown, Black, Grey & Blue), (Red, Yellow, Blue & Black) or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2106

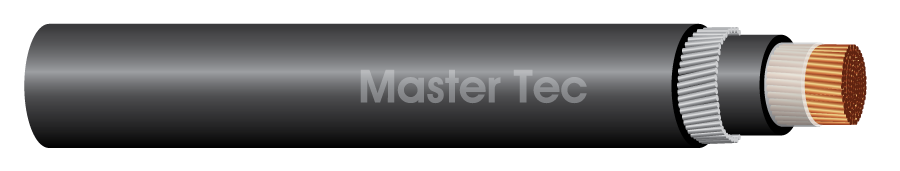

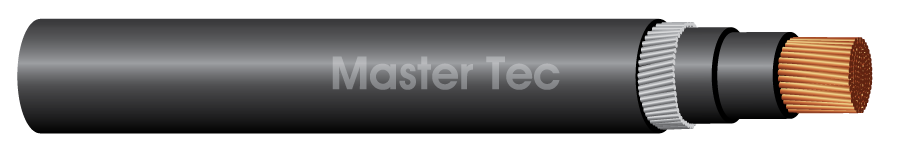

XLPE / PVC / AWA / PVC Cables IEC 60502-1, MS 2105 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, XLPE insulated, PVC bedding, Aluminium wires armoured, PVC sheathed cable.
Insulation Colour : Natural or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2105

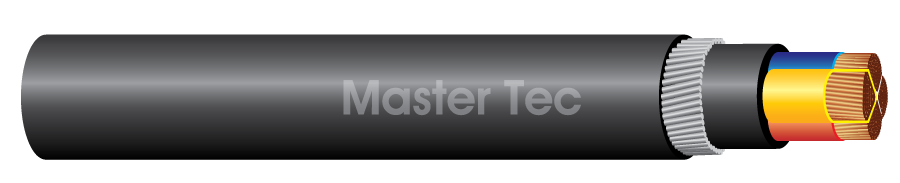

XLPE / PVC / SWA / PVC Cables IEC 60502-1, MS 2107 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, XLPE insulated, PVC bedding, Galvanized steel wires armoured, PVC sheathed cable.
Insulation Colour :
2-Core : (Brown & Blue) or (Black & Red)
3-Core : (Brown, Black & Grey) or (Red, Yellow & Blue)
4-Core : (Brown, Black, Grey & Blue), (Red, Yellow, Blue & Black) or as per order
Sheath Colour : Black
Specification : IEC 60502-1, MS 2107

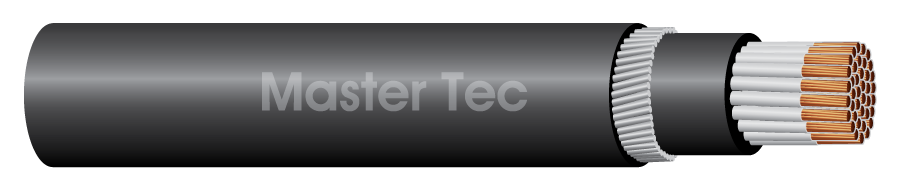

XLPE / PVC / SWA / PVC Cables IEC 60502-1, MS 2107 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, XLPE insulated, PVC bedding, Galvanized steel wires armoured, PVC sheathed cable.
Insulation Colour : White with black numbering
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2107

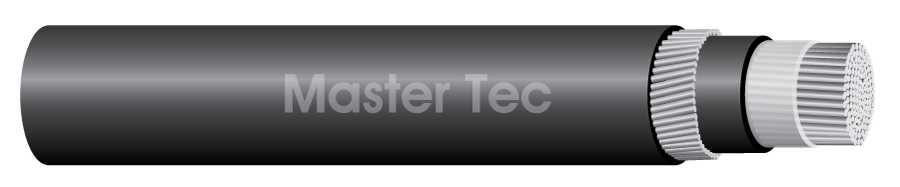

XLPE / PVC/ AWA PVC Cables IEC 60502-1, MS 2105 (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays and on cable ladders and in switchgears.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, XLPE insulated, PVC bedding, Aluminium wires armoured, PVC sheathed cable.
Insulation Colour : Natural or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1, MS 2105

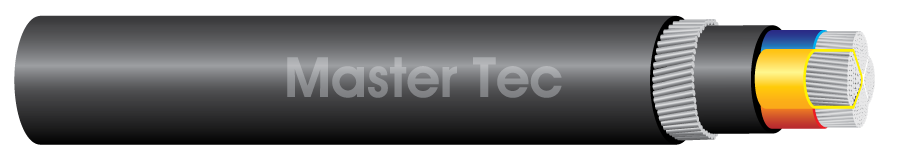

XLPE / PVC / SWA / PVC Cables IEC 60502-1, MS 2107 (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, XLPE insulated, PVC bedding, Galvanized steel wires armoured, PVC sheathed cable.
Insulation Colour :
2-Core : (Brown & Blue) or (Black & Red)
3-Core : (Brown, Black & Grey) or (Red, Yellow & Blue)
4-Core : (Brown, Black, Grey & Blue), (Red, Yellow, Blue & Black) or as per order
Sheath Colour : Black or per order
Specification : IEC 60502-1, MS 2107

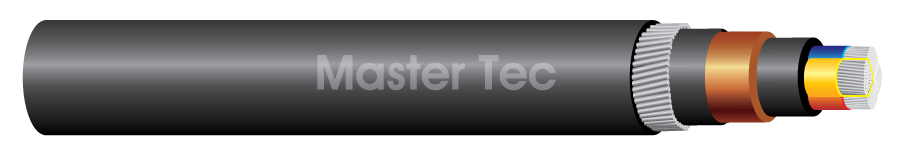

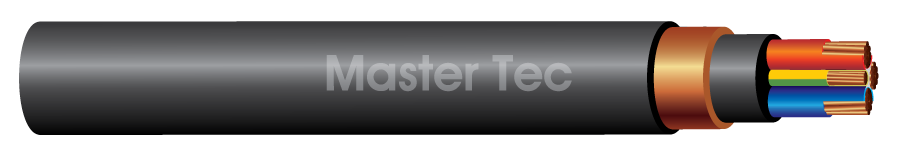

XLPE / PVC / SCT / PVC / AWA / PVC Cables IEC 60502-1 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays and on cable ladders and in switchgears.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, XLPE insulated, PVC bedding, Screen copper tape, PVC bedding, Aluminium wires armoured, PVC sheathed cable.
Insulation Colour : Natural or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1

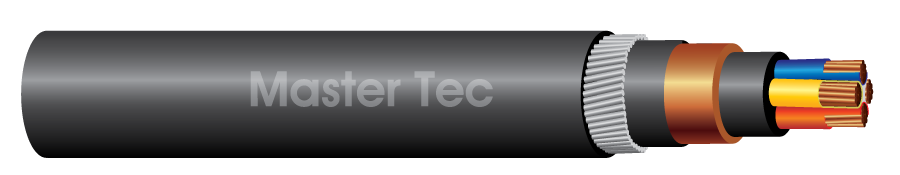

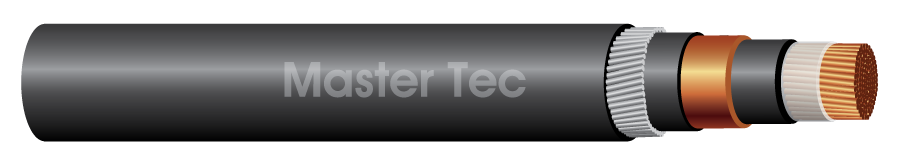

XLPE / PVC / SCT / PVC / SWA / PVC Cables IEC 60502-1 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, XLPE insulated, PVC bedding, Screen copper tape, PVC bedding, Galvanized steel wires armoured, PVC sheathed cable.
Insulation Colour :
4-Core : (Brown, Black, Grey & Green/Yellow), (Red, Yellow, Blue & Green/Yellow) or as per order
Sheath Colour : Black or per order
Specification : IEC 60502-1

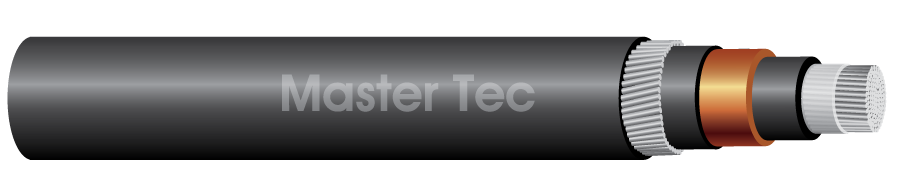

XLPE / PVC / SCT / PVC / AWA / PVC Cables IEC 60502-1 (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays and on cable ladders and in switchgears.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, XLPE insulated, PVC bedding, Screen copper tape, PVC bedding, Aluminium wires armoured, PVC sheathed cable.
Insulation Colour : Natural or as per order
Sheath Colour : Black or as per order
Specification : IEC 60502-1



XLPE / PVC / SCT / PVC / SWA / PVC Cables IEC 60502-1 (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, XLPE insulated, PVC bedding, Screen copper tape, PVC bedding, Galvanized steel wires armoured, PVC sheathed cable.
Insulation Colour :
4-Core : (Red, Yellow, Blue & Green/Yellow), (Brown, Black, Grey & Green/Yellow) or as per order
Sheath Colour : Black or per order
Specification : IEC 60502-1



XLPE / MDPE / SCT / MDPE Cables TNB SPEC (Aluminium)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain aluminium conductor, XLPE insulated, MDPE bedding, Screen copper tape, MDPE sheathed cable.
Insulation Colour :
4-Core : (Red, Yellow, Blue & Black)
Sheath Colour : Black or per order
Specification : TNB spec



XLPE / PVC / SCT / PVC Cables IEC 60502-1 (Copper)

Application : This cable is primarily used for main power supply.
It can be installed in cable ducts, in cable trunking, on cable trays, and on cable ladders.
Voltage Rating : 600/1000 V
Construction : Stranded plain annealed copper conductor, XLPE insulated, PVC bedding, Screen copper tape, PVC sheathed cable.
Insulation Colour :
4-Core : (Red, Yellow, Blue & Green/Yellow), (Brown, Black, Grey & Green/Yellow) or as per order
Sheath Colour : Black or per order
Specification : IEC 60502-1
