Master Tec Wire & Cable Sdn Bhd

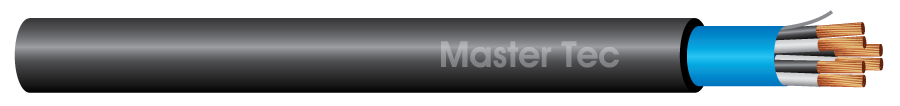

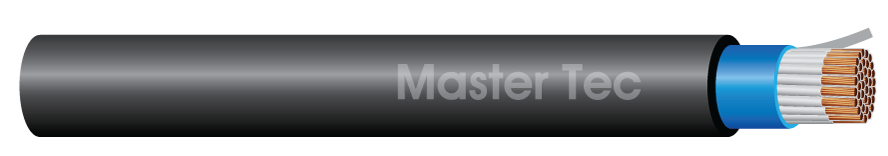

CU / PVC / OSCR / PVC (IN-POP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals.
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, PVC insulation, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC compound sheath
Insulation Colour : Yellow or White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7

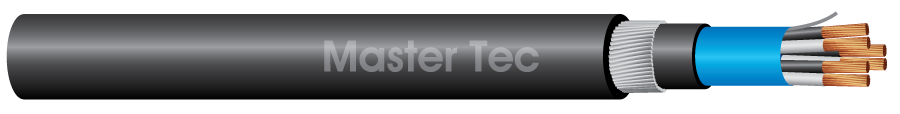

CU / PVC / OSCR / PVC / SWA / PVC (IN-POSP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, PVC insulation, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC bedding, Galvanized steel wire armoured, PVC compound sheath
Insulation Colour : White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7



CU / PVC / OSCR / PVC (IN-POP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, PVC insulation, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC compound sheath
Insulation Colour : White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7



CU / PVC / OSCR / PVC / SWA / PVC (IN-POSP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, PVC insulation, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC bedding, Galvanized steel wire armoured, PVC compound sheath
Insulation Colour : White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7

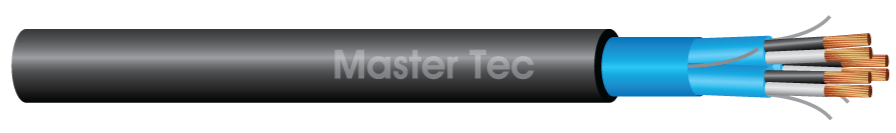

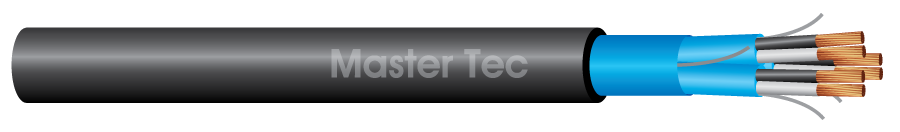

CU / PVC / ISOS / PVC (IN-PIOP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, PVC insulation, Individual laminated aluminium polyster tape with a tinned copper drain wire, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC compound sheath
Insulation Colour : White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7

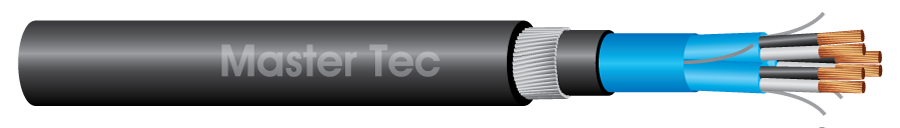

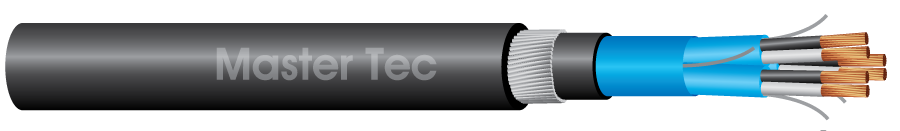

CU / PVC / ISOS / PVC / SWA / PVC (IN-PIOSP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, PVC insulation, Individual laminated aluminium polyster tape with a tinned copper drain wire, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC bedding, Galvanized steel wire armoured, PVC compound sheath
Insulation Colour : White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7



CU / XLPE / OSCR / PVC (IN-XOP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, XLPE insulation, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC compound sheath
Insulation Colour : White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7



CU / XLPE / OSCR / PVC / SWA / PVC (IN-XOSP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, XLPE insulation, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC bedding, Galvanized steel wire armoured, PVC compound sheath
Insulation Colour : White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7



CU / XLPE / ISOS / PVC (IN-XIOP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, XLPE insulation, individual laminated aluminium polyster tape with a tinned copper drain wire, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC compound sheath
Insulation Colour : White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7



CU / XLPE / ISOS / PVC / SWA / PVC (IN-XIOSP) Cables BS EN 50288-7

Application : This cable is used machines, measuring instruments, and control systems for the transmission of analogue and digit signals
Voltage Rating : 500 V
Construction : Stranded plain annealed copper conductor, XLPE insulation, individual laminated aluminium polyster tape with a tinned copper drain wire, Overall laminated aluminium polyster tape with a tinned copper drain wire, PVC bedding, Galvanized steel wire armoured, PVC compound sheath
Insulation Colour : White with Black numberings or refer to BS 5308 colour code or as per order
Sheath Colour : Black or Blue or as per order
Specification : BS EN 50288-7
