Stranded Plain Annealed Copper Conductor IEC 60228, BS 6360

Application : For power transmission and distribution lines.
Construction : Stranded plain annealed copper conductor
Specification : IEC 60228, BS 6360

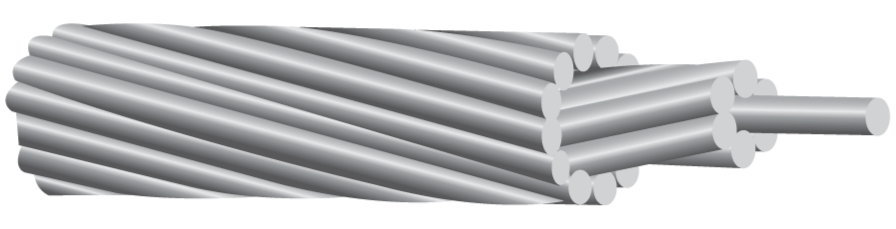

Stranded Plain Aluminium Conductor IEC 60228, BS 6360

Application : For power transmission and distribution lines.
Construction : Stranded plain aluminium conductor
Specification : IEC 60228, BS 6360



Aluminium Conductor Steel Reinforced (ACSR) BS 215-2, TNB SPEC

Application : This standard covers aluminium stranded conductor steel reinforced which could withstand high tensile load to be used mainly for overhead transmission lines, overhead distribution lines.
Construction : The center wire or wires are galvanized steel and the outer layer or layers are stranded plain aluminium.
Specification : BS 215-2, TNB Spec



Thermal Resistant Aluminium Conductor Steel Reinforced (TACSR) TNB SPEC, IEC 61232, IEC 62004

Application : TACSR can be safely operated continuously above 150°C enabling to pump more current through the conductor. Where there is a need to transmit higher power but restrictions on getting new power corridors approved, various types of TAL conductors are one of the best creative solution options to utilities. Ability of the Zirconium doped aluminum alloy to maintain its electrical and mechanical properties at elevated temperatures makes these conductors a very cost effective solution in refurbishing the existing lines with enhanced capacity.
Construction : The center wire or wires are aluminium clad-steel and the outer layer or layers are Heat Resistant Aluminum Alloy (generally known as TAL)
Specification : TNB SPEC, IEC 61232, IEC 62004

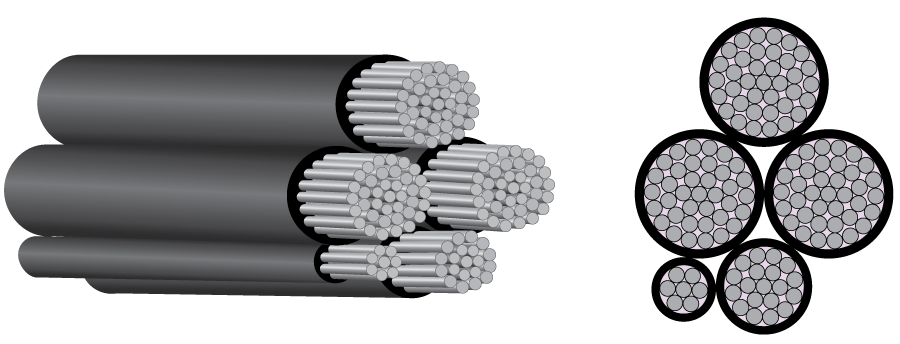

Aerial Bundle Cable (ABC) TNB Spec, IEC 60502-1:1997

Application : The aerial bundled cables designed for overhead distribution line have an insulated neutral messenger, which the insulated aluminium phase conductors are helically wound over it. Cables are rated at 0.6/1(1.2)kv
Construction : 1. Conductor :
a) Phase - The phase conductors shall be aluminium conductor and compacted circular stranded.
b) Neutral or messenger - The neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.
c) Street Lighting - The street lighting conductors shall be aluminium conductor and compacted circular stranded.

2. Insulation :
The phase, neutral and street lighting conductors shall be extruded with Polyethylene (PE) as insulation.

3. Assembly :
The cable consists of insulated phase and street lighting aluminium conductors, shall be held firmly into the insulated neutral messenger aluminium alloy conductor in a right hand (Z) lay.
Specification : TNB Spec, IEC 60502-1:1997
